Geometry Formulas and Equations: Top Examples- Simplified

At a glance, an interior designer, a land surveyor and a baker may not share anything in common. But if you dive deeper, you'll notice that these three occupations use a certain degree of geometry equations in their day-to-day work.

Point: Represented by a dot, and with an alphabet (like A, B or C) to indicate a location

Plane: A flat surface with two dimensions: length and width, like a wall surface or graph paper

Line: Two points on a plane make up a line, extending in two directions (two end points)

Ray: A line with a definite endpoint

Angle: Two rays meet at a common endpoint, forming a vertex

🔶 Points and Lines

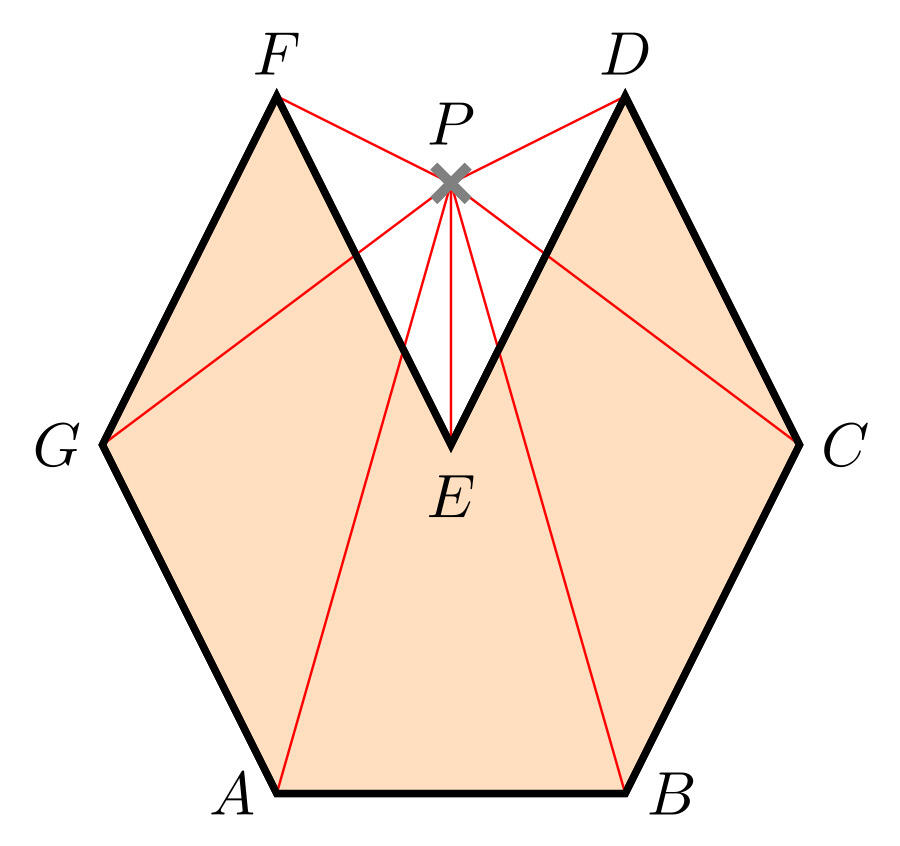

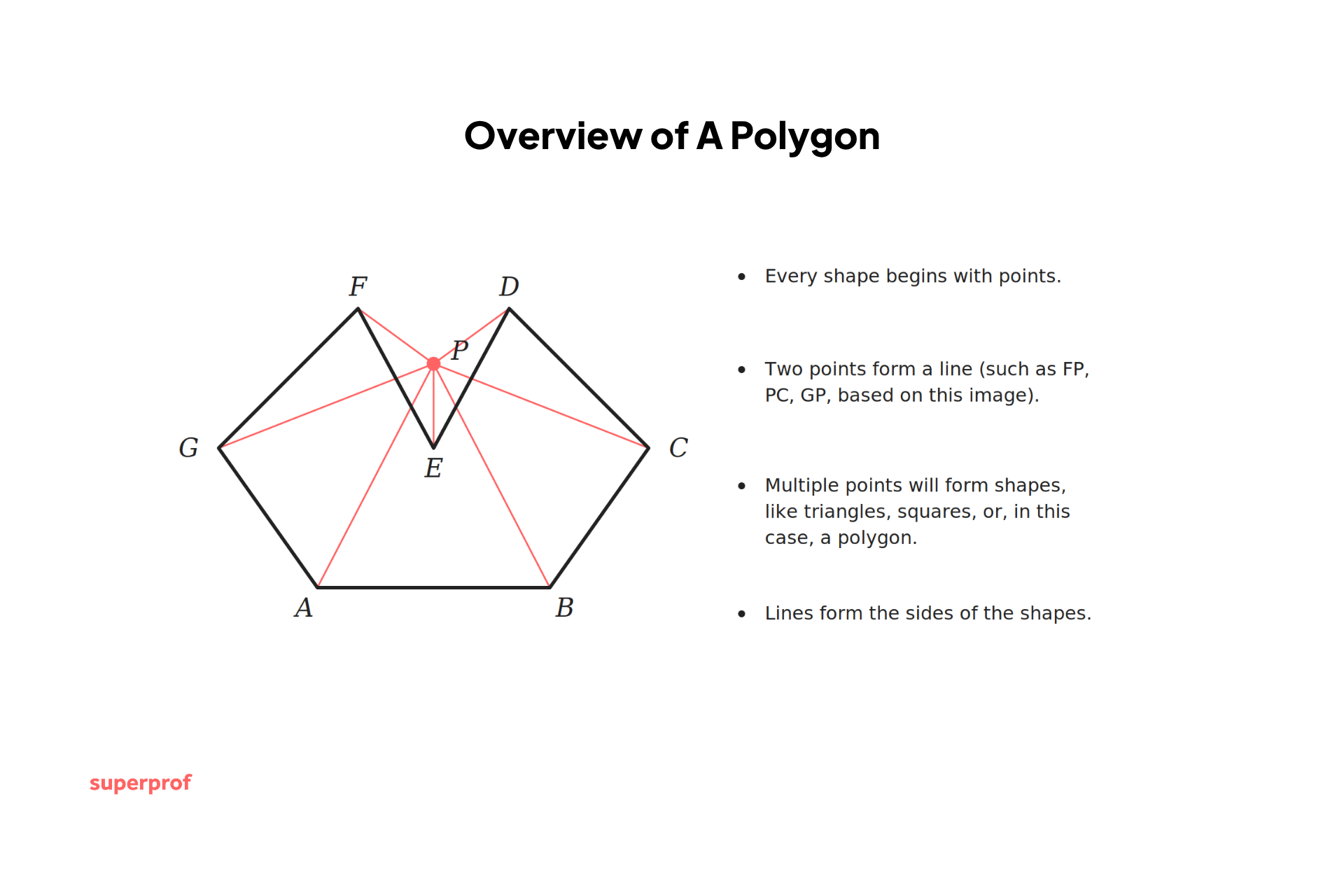

A pale orange, concave hexagon labeled ABCDEFG with an internal point P connected by red lines to vertices D, F, G, A, and B, and the point E below P. — Overview of a polygon. By MartinThoma - Own work, CC BY 3.0, Wikimedia Commons

Every shape begins with points.
Two points form a line (such as FP, PC, GP, based on this image).
Multiple points will form shapes, like triangles, squares, or, in this case, a polygon.
Lines form the sides of the shapes

🔷 Rays and Angles

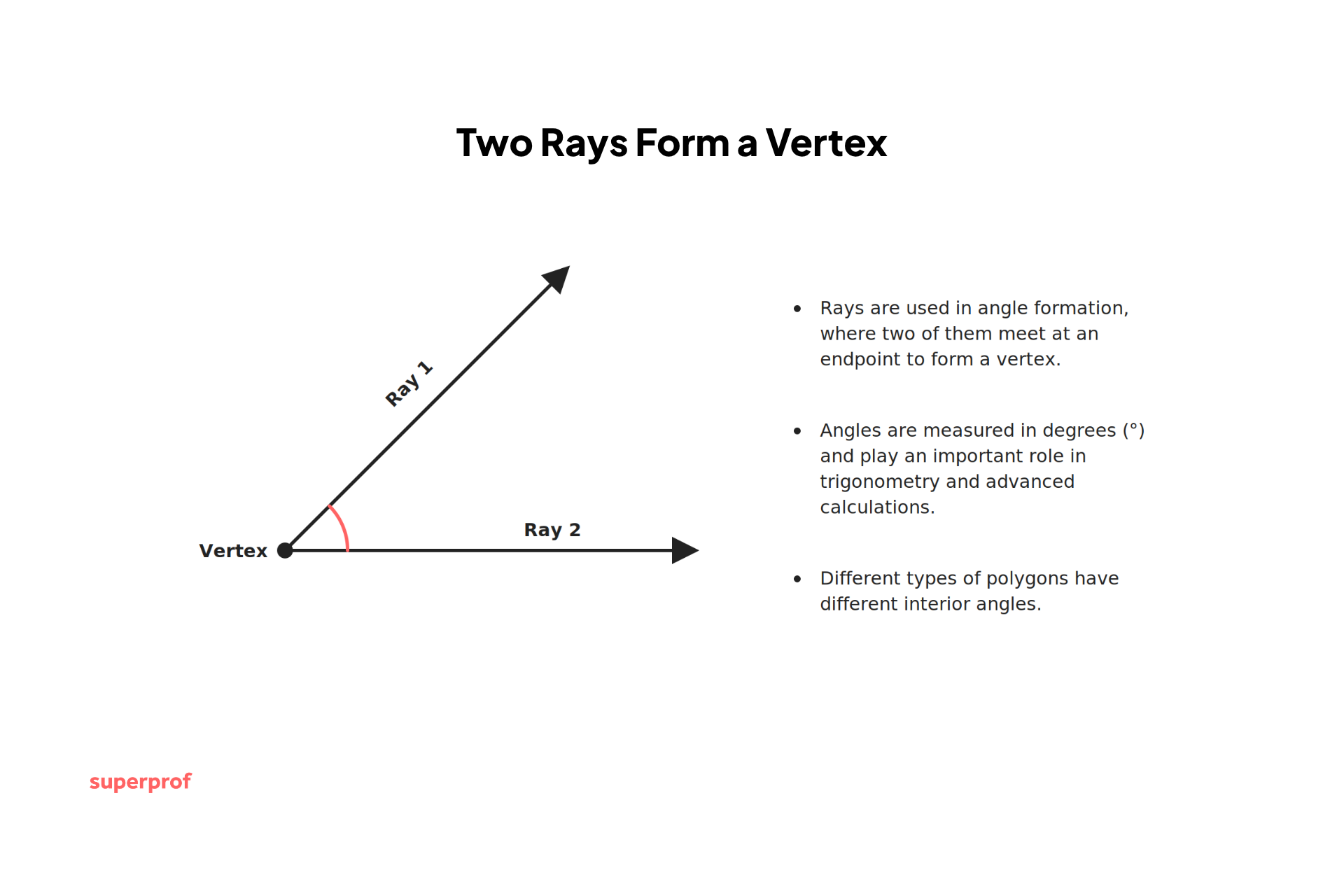

Rays are used in angle formation, where two of them meet at an endpoint to form a vertex
Angles are measured in degrees (°) and play an important role in trigonometry and advanced calculations
Different types of polygons have different interior angles

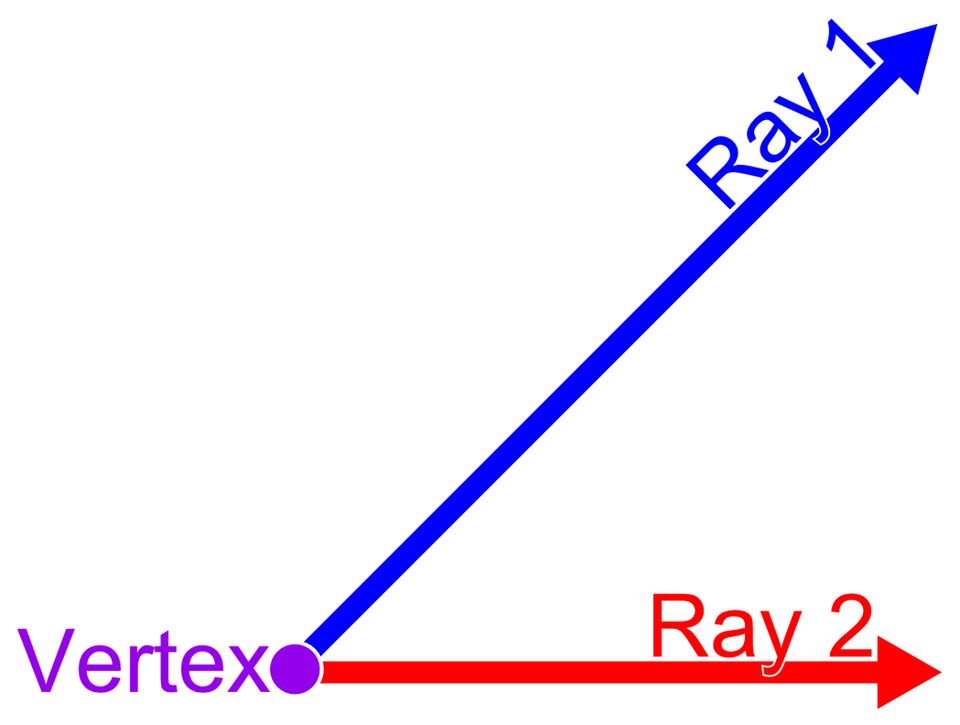

Diagram illustrating an angle formed by two rays, Ray 1 (blue) and Ray 2 (red), originating from a central Vertex labeled in purple. — Two rays form a vertex, an angle. By CMBJ - Own work, CC BY-SA 3.0, Wikimedia Commons

The best Math tutors available

🔲 2D Geometry Formulas

2D geometry formulas are used for flat shapes with length and width, typically to measure perimeter and area. The shapes that we'll discuss here are triangles, quadrilaterals, and circles.

Shape	Perimeter / Circumference	Area	What to remember
Triangle	P = a + b + c	A = 1/2 × b × h	Add all three sides for perimeter; use the base and perpendicular height for area.
Equilateral triangle	P = 3s	A = (√3/4) × s²	All three sides are equal.
Isosceles triangle	P = 2a + b	A = 1/2 × b × h	Two sides are equal, and the third side is the base.
Scalene triangle	P = a + b + c	A = 1/2 × b × h	All sides are different lengths.
Square	P = 4s	A = s²	All sides are equal.
Rectangle	P = 2(l + w)	A = l × w	Length and width are different.
Parallelogram	P = 2(a + b)	A = b × h	Use the perpendicular height, not the slanted side.
Rhombus	P = 4s	A = 1/2 × d₁ × d₂	All sides are equal; area uses diagonals.
Trapezoid	P = a + b + c + d	A = 1/2 × (b₁ + b₂) × h	The two parallel sides are used in the area formula.
Circle	C = 2πr or C = πd	A = πr²	Circles use circumference instead of perimeter.

Here's what different key symbols mean for the formulas:

a,b,c = side lengths
s = side length
l = length
w = width
b = base

h = perpendicular height
r = radius
d = diameter
d1,d2 = diagonals
π = pi, approximately 3.14

🧊 3D Geometry Formulas

Now, let's explore some 3D geometry formulas used for shapes with length, width and height. The examples of shapes that we will be looking at are polyhedra (cube, cuboid, prism), cylinders, cones and spheres.

Shape	Surface Area	Volume	What to remember
Cube	SA = 6s²	V = s³	All edges are equal.
Cuboid	SA = 2(lw + lh + wh)	V = l × w × h	Length, width, and height may all be different.
Prism	SA = 2B + Ph	V = B × h	B = area of base, P = perimeter of base, h = height.
Cylinder	SA = 2πr² + 2πrh	V = πr²h	Two circular ends and one curved surface.
Cone	SA = πr² + πrl	V = 1/3 × πr²h	l = slant height.
Sphere	SA = 4πr²	V = 4/3 × πr³	Only radius is needed.
Pyramid	SA = B + 1/2Pl	V = 1/3 × B × h	B = area of base, P = perimeter of base, l = slant height.
Frustum of a cone	SA = π(R² + r²) + π(R + r)l	V = 1/3 × πh(R² + Rr + r²)	R = larger radius, r = smaller radius.
Torus	SA = 4π²Rr	V = 2π²Rr²	R = distance from center of tube to center of torus, r = tube radius.

Here's what different key symbols mean for the formulas:

s = side length
l = length or slant height, depending on the shape
w = width
h = height
r = radius

R = larger radius
B = area of base
P = perimeter of base
π = pi, approximately 3.14
² = squared
³ = cubed

➡️ Coordinate Geometry Formulas

Next, let’s look at coordinate geometry formulas used in the Cartesian plane, a 2D graphing system for locating points and drawing shapes.

The points are identified by using ordered pairs (x,y), where x is the horizontal position and y is the vertical position.

(2,3) means 2 units right and 3 units up
(−1,4) means 1 unit left and 4 units up

The four important formulas under coordinate geometry include:

Distance formula (how far apart are two points)
Midpoint formula (centre of a segment)
Slope formula, where m = slope
Equation of a line in different forms

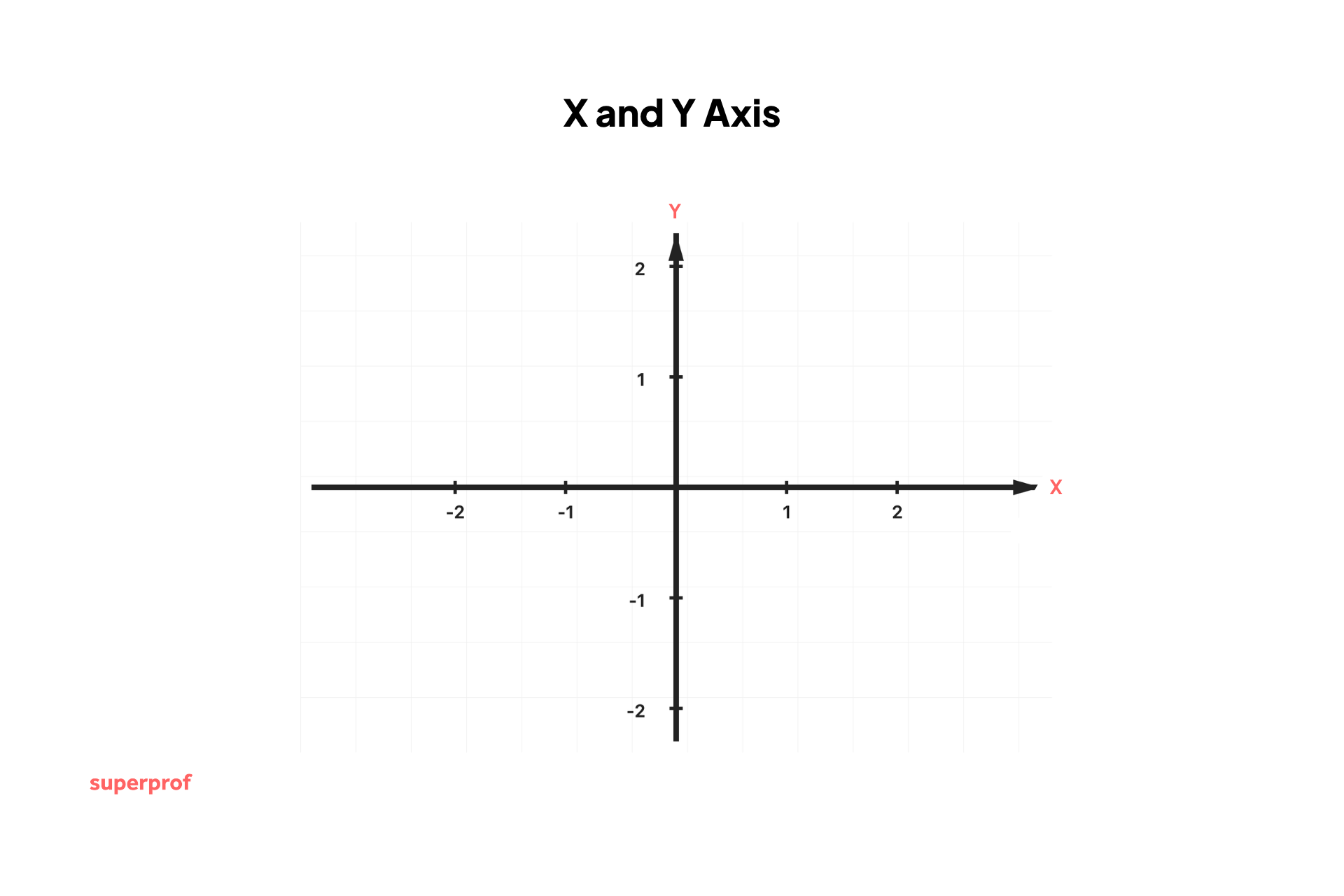

A Cartesian coordinate plane with $x$ and $y$ axes marked from $-2$ to $2$ in increments of one, suitable for plotting graphs. — The x and y axis help you to determine different coordinates. By pd4u - Own work, CC0, Wikimedia Commons

Here's an overview of the formulas:

Formula Name	Formula	Purpose
Distance Formula	d = √((x2-x1)^2 + (y2-y1)^2)	Find distance between two points
Midpoint Formula	M = ((x1+x2)/2, (y1+y2)/2)	Find midpoint of a segment
Slope Formula	m = (y2-y1)/(x2-x1)	Find slope of a line
Slope-Intercept Form	y = mx + b	Equation of a line
Point-Slope Form	y - y1 = m(x - x1)	Line equation using point & slope
Standard Form	Ax + By = C	Standard line representation
Section Formula	((mx2+nx1)/(m+n), (my2+ny1)/(m+n))	Divide line in ratio m:n
X-axis	y = 0	Represents horizontal axis
Y-axis	x = 0	Represents vertical axis
Parallel Lines	m1 = m2	Check if lines are parallel
Perpendicular Lines	m1*m2 = -1	Check perpendicular lines

Here's an example of how to apply these formulas to this question:

If you are given two points: $(2, 3)$ and $(6, 7)$ and asked to calculate the distance, midpoint and slope, here's how to go about it:

Easy calculation and solutions

Distance $= \sqrt{(6 - 2)^{2} + (7 - 3)^{2}} = \sqrt{16 + 16} = \sqrt{32}$
Midpoint $= (\frac{2 + 6}{2}, \frac{3 + 7}{2}) = (4, 5)$
Slope $= \frac{7 - 3}{6 - 2} = 1$

The best Math tutors available

📐 Trigonometric Applications in Geometry

Trigonometry is a branch of math that deals with angles and side lengths in triangles. ² The basic trigonometric ratios for sin, cos and tangent are only applicable for right-angled triangles, and you need at least one angle to use either one of them.

Right triangles have the following characteristics:

They have three sides
They have a 90° angle, looking like a perfect L-shape.
The side opposite the right angle is called the hypotenuse (and it’s always the longest side)
The other two sides are called adjacent and opposite

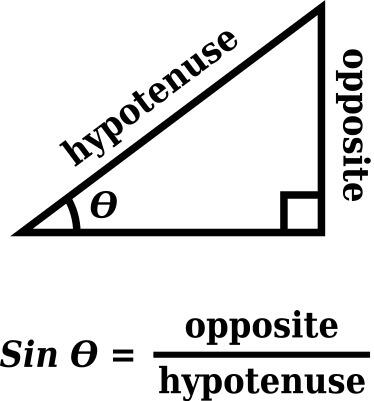

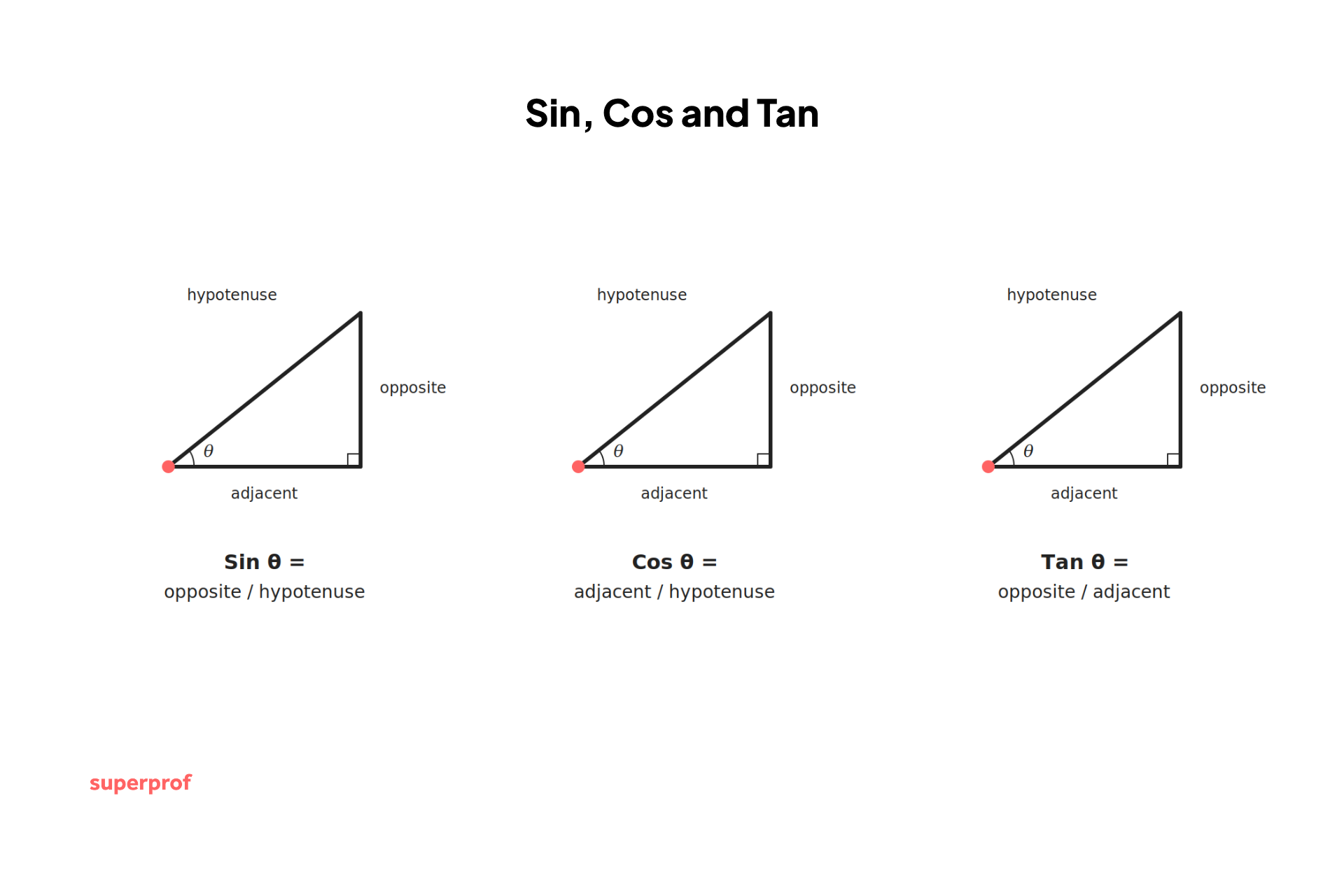

Right triangle labeled with angle θ, opposite side, hypotenuse, and sine formula: Sin θ = opposite divided by hypotenuse.

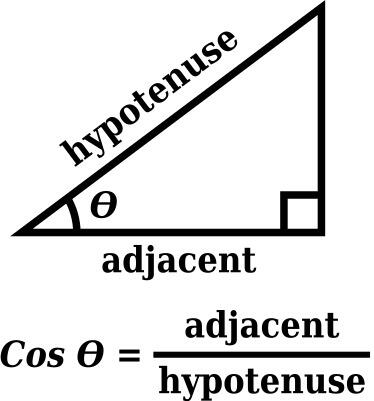

Right triangle labeled with angle θ, sides hypotenuse and adjacent; cosine θ equals adjacent divided by hypotenuse formula shown.

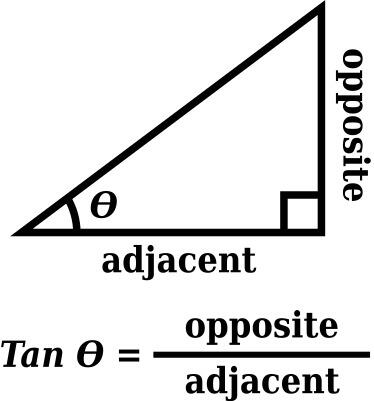

Right triangle labeled with angle θ, opposite and adjacent sides, and the formula tan(θ) = opposite divided by adjacent.

Another popular equation or theorem associated with right angles is none other than Pythagoras' Theorem. It is only used to calculate missing side lengths and not angles.

The formula is: $a^2 +b^2 =c^2$

Let's look at this sample question:

A ladder leans against a wall forming a right triangle: Distance from wall = 6 m, Ladder length = 10 m. Find the wall height

Easy calculation and solution

The wall height: $h = \sqrt{100 - 36}$ h=100−36
h= $√(64)$
h=8 m

Don't forget to check out this geometry guide for beginners.

🧱 Advanced Geometry Formulas

Moving on, we will look at various geometry formulas and equations involving more complex shapes, such as ellipses and hyperbolas, as well as complex solids like frustums and toroids.

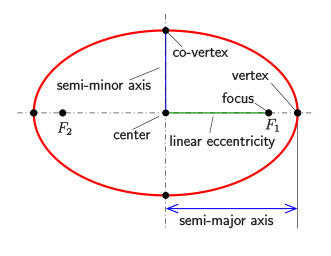

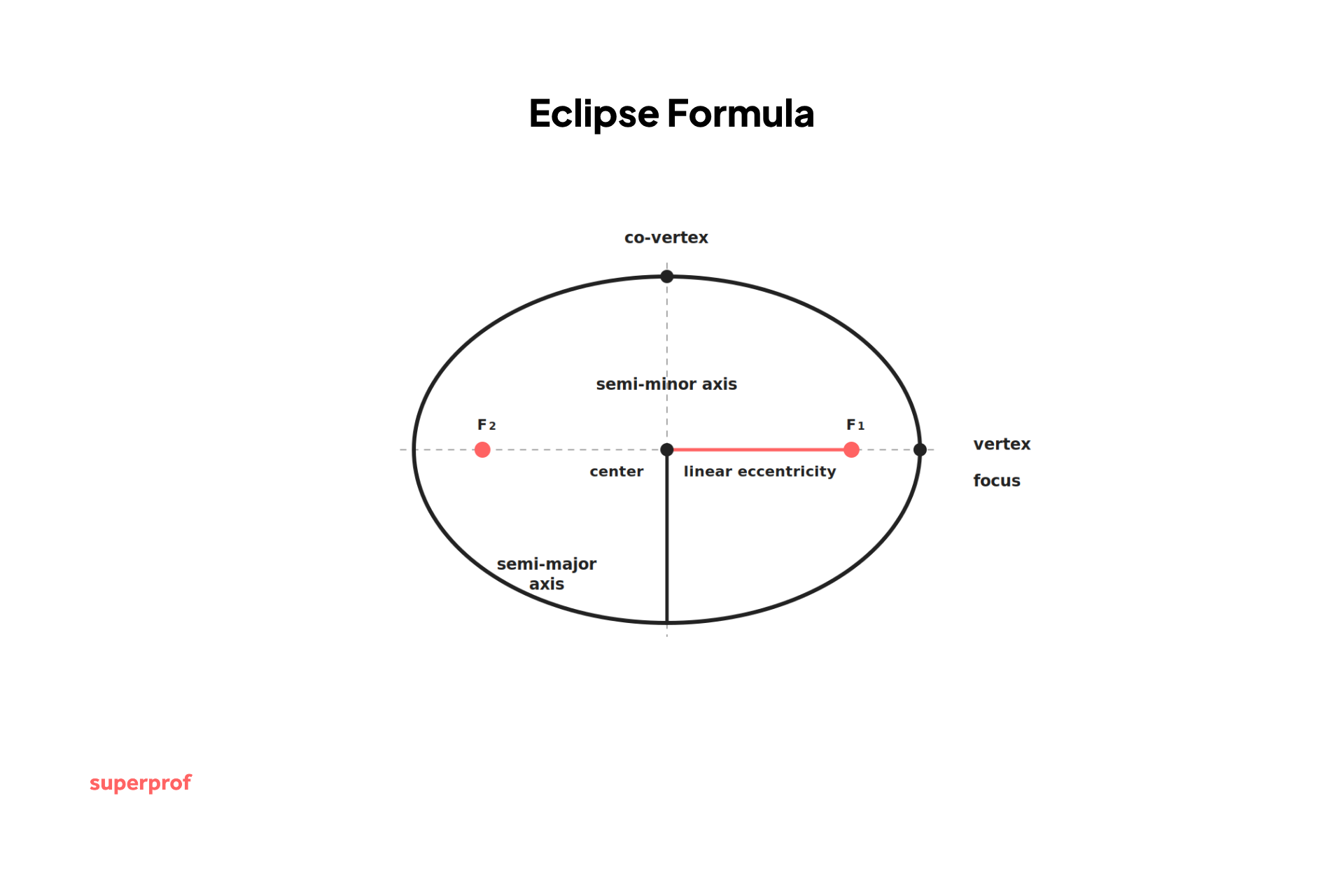

Diagram of an ellipse showing center, foci (F1, F2), vertices, co-vertex, semi-major and semi-minor axes, and linear eccentricity. — An ellipse formula is often used to calculate orbital mechanics. By Ag2gaeh - Own work, CC BY-SA 4.0, Wikimedia Commons

An ellipse is essentially a stretched circle. It looks like an oval with a smooth, closed curve ³
It has two axes along the x-axis and the y-axis: the major axis and the minor axis
It has a centre point and is symmetrical

The ellipse equation plays a big role in the field of geometry to help us plot the ellipse accurately on a graph, find the intercepts and perform calculations on planetary orbits (similar shape) and satellite motions.

The Formula: $\frac{x^2}{a^2} + \frac{y^2}{b^2} = 1$ . Here are what the symbols mean:

Symbol	Meaning	Simple explanation
x	x-coordinate	Horizontal position of a point on the ellipse 📍
y	y-coordinate	Vertical position of a point on the ellipse 📍
a	semi-major axis	Distance from the center to the widest point (long radius) ➖
b	semi-minor axis	Distance from the center to the narrow point (short radius) ➖
1	boundary condition	Only points that make the equation equal 1 lie exactly on the ellipse ✔️

On the other hand, hyperbolas have two different formulas depending on their orientation: horizontal or vertical.

Horizontal hyperbola

\frac{x^2}{a^2} - \frac{y^2}{b^2} = 1

Vertical hyperbola

\frac{y^2}{a^2} - \frac{x^2}{b^2} = 1

Like the ellipse, hyperbola formulas are also widely used in calculations involving satellite and space trajectories, in addition to telescope and antenna design and even navigation systems.

For more complex solids like frustrums and toroids, you can use the following formulas to calculate their respective volumes.

Here's an overview of the symbols and variables of the formulas:

Symbol	Meaning in Frustum of a Cone 🔺	Meaning in Toroid (Torus) 🍩
V	Volume of the frustum	Volume of the torus
π	Mathematical constant pi	Mathematical constant pi
h	Height of the frustum	—
R	Larger radius of the frustum	Distance from the center of the torus to the center of the tube
r	Smaller radius of the frustum	Radius of the tube

Frustums are commonly used in various everyday application designs like buckets, paper cups and lamp shades, while toroids are usually seen in mechanical engineering parts, toroidal transformers and inductors.

Frustrum (A cone with the top removed)

V = \frac{1}{3}\pi h \left(R^2 + Rr + r^2\right)

Toroid (A ring or doughnut )

V = 2\pi^2 R r^2

🎯 Practical Applications of Geometry Formulas

We hope you have gained a comprehensive understanding of these geometry equations and how to apply them mathematically. Now, let's switch gears to look at them through a more practical lens. ⁴

The three most common industries and fields across the globe that use geometry formulas are:

Engineer working on a laptop amid automotive wiring and mechanical components in a bright industrial workshop.

Engineering

Triangle formulas in structural engineering
Surface area calculations for bridges and towers
Volume measurements for high-rise buildings
Cylindrical volume calculation in mechanical engineering

Modern building facade with multiple overlapping angular balconies and reflective glass panels in shades of gray and blue.

Architecture

Area formulas help determine room size and material needs for floor plan design
Use trigonometric ratios for roof and staircase design
Use the circle circumference formula when designing domes for stadiums, museums or religious buildings

Figurine of a person with wild gray hair, wearing a suit and red tie, raising their right hand with an index finger pointing up.

Physics

Distance formulas to help determine speed and trajectory when planning GPS systems or space exploration
Using ellipse equations in orbital mechanics
Calculating distance between stars
Measuring planetary orbits and helping predict satellite paths (must-have knowledge for astrophysicists)

💡 Problem-solving Examples Using Geometry Formula

Here are some examples of how you can unlock these formulas to make your life more efficient.

Example 1: Tile Installation

A rectangular room measures: 9 m × 6 m (Area)
$A = 54m^2$ If each tile covers: 0.25 $m^2$
$\frac{54}{0.25} = 216$

Doing this calculation in advance can help you to avoid material waste and installation efforts. In the long run, you'll save a lot because you have avoided cost overruns.

Let's look at another example.

Example 2: Finding the volume of a swimming pool

The given details of the swimming pool are:
20 m long, 8 m wide and 2 m deep
Calculation: V=lwh (Volume = length x widthx height) $V = 20 \times 8 \times 2$ $V = 320m^3$

We hope you have enjoyed reading this article. May you find great delight in mastering these geometry equations in your studies as well as using them effectively in various real-life scenarios. All the best!

In geometric and physical applications, it always turns out that a quantity is characterized not only by its tensor order, but also by symmetry.
Hermann Weyl
